BSR7

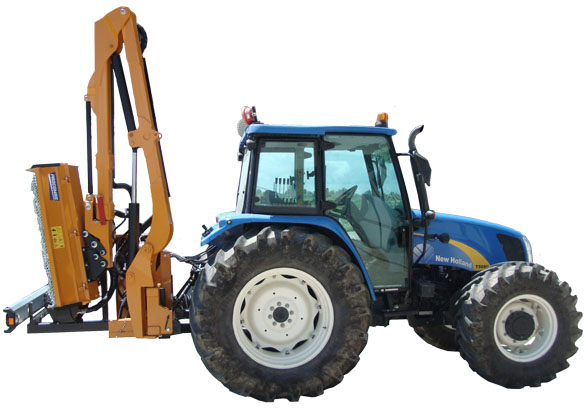

HYDRAULIC FLAIL MOWER BSR7

PROCOMAS presents the NEW series of professional hydraulic flail mower with extendable arm of the BSR-P65 series; Designed and built to more easily overcome new-concept guard-rails by making full use of the entire length of the arm; the new line makes it pleasant and organic in all its volume.

Technical features and standard accessories:

• Arm length of 6.90 m from tractor center to outside mower, including 80 cm hydraulic removable control.
• 100 or 120 cm working mower with reversible rotor and universal Y blades (other types upon request), adjustable front and rear protections, adjustable support roller height.
• Independent hydraulic system with double circuit, cast iron pump and engine with 56 Hp (41Kw) rotor power at 2900 RPM (piston system upon request)
• Multiplier for oil bath pumps and a PTO of 540 RPM.
• Commands through flexible cables upon request, hydraulic-electro controls with constant priority flow with Joystick.
• High-resistance tubes protected by spiral.
• Large surface heat exchanger with thermostat.
• Device for absorbing any frontal impacts.
• Equipment weight 1050/1080 Kg (variable by version).


Scarica depliant PDF

Cutting Tools
F1 (60x6) F3 (60x8)	F5	F8
