BSH

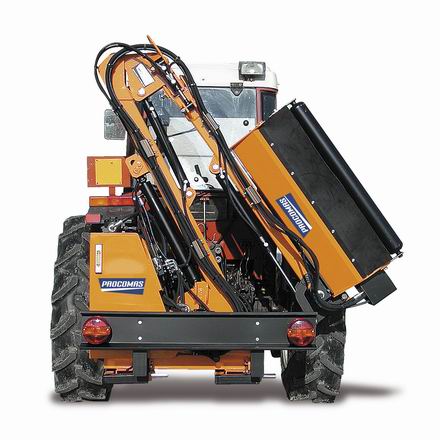

HYDRAULIC FLAIL MOWER WITH ARM BSH
New Hydraulic Brushcutter designed and made with top-quality materials, it stands out for its ease of use, versatility and for the quality-price ratio.
MACHINE SUPPLIED COMPLETE WITH:
- 80 cm or 100 cm work width hydraulic cutter with Y blades type F2 or F5 with reversible blade carrier shaft, CE protections, adjustable height roll
- PROVISION FOR REAR OR FRONT ATTACHMENT
- Independent double circuit hydraulic system with high-performance gear engine and pump. Group 2+2
- Multiplier for Power Take-Off 540 RPM
- Commands through flexible cables
- Hydraulic tubes protected by spiral
- Device for absorbing any frontal impacts except on H3 model
- Cardan shaft
- 65 liter oil tank
- Tensioners
- CE manual with spare parts tables and conformity declaration
ACCESSORIES ON REQUEST
- Air/oil heat exchanger mounted
- On/off constant flow electric commands with joystick
- Hydro-pneumatic compensator on the lift cylinder
- Rear support with lighting.

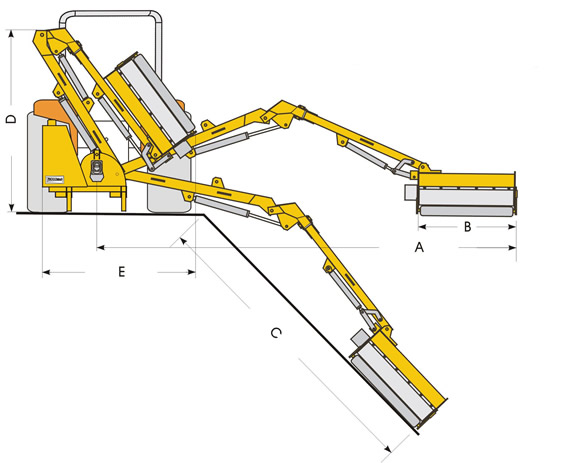

| MACHINE MOD. |
A |
B |
C |
D |
E |
kg |
| BSH3 F80 |
3,10 |
0,80 |
1,86 |
1,58 |
1,58 |
380 |
| BSH4 F80 |
4,00 |
0,80 |
2,80 |
2,08 |
1,58 |
455 |
| BSH4F100L |
4,20 |
1,00 |
3,00 |
2,08 |
1,58 |
465 |
| BSH5 F80 |
4,80 |
0,80 |
3,60 |
2,48 |
1,58 |
505 |
| BSH5 F100L |
5,00 |
1,00 |
3,80 |
2,48 |
1,58 |
515 |
|
Cutting tools
F2
|
Cutting tools
F5
|
 |
 |
