BAP

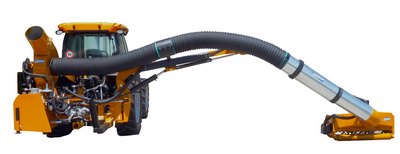

HYDRAULIC FLAIL MOWER WITH SUCTION

Designed and built for cutting grass in escarpments or road detected with recovery of the resulting material by simultaneous suction; applied rear to the 3-point attachment of tractor with 90-110 HP power with arm length from 7,10 to 8,60 meters. Available with central attachment for tractors with power ranging from 100-120 HP and outreach length from 7,10 to 8,60 meters. All equipped with 120 cm aspirating flail mower head and reversible rotor.

TECHNICAL DATA AND BASIC EQUIPMENT

• Multiplier for oil bath pumps and a PTO of 540 rpm.
• Flail mower head with suction complete with Y-tines type F1-F3
• Independent hydraulic system with double circuit and high-performance cast iron gear motor and pump
• Rotation of the cutting head 180°
• Joints mounted on steel bushings with setback
• Safety device for absorbing any frontal impacts
• Controls by means of flexible cables
• High resistance tubes protected by spiral
• Oil tank of 240 liters
• Tensioners and cardan shaft
• Complies with the EC machinery directive

ACCESSORIES ON REQUEST

• Air-oil cooling system mounted
• Hydro-pneumatic compensator on lift cylinder
• Constant flow electro-hydraulic controls with joystick
• High-pressure gear motor and pump system
• Rear support with lighting

Cutting Tools

F1 - F3
