BS62

HYDRAULIC FLAIL MOWER WITH ARM BS62

Designed and built for cutting grass in those conditions where larger and more expensive equipment cannot be used.

THE MACHINE IS SUPPLIED COMPLETE WITH:

• Hydraulic forage harvester with 80 cm working width , Y blades type F9 fixed with shackles and CE guards.
• Roller adjustable in height.
• Independent double circuit hydraulic system and high performance.
• Control by flexible cables.
• Hydraulic tubes protected by PVC spiral.
• Oil tank with 55 lt.
• Tensioners
• CE manual with spare parts tables and declaration of conformity

TECHNICAL DATA

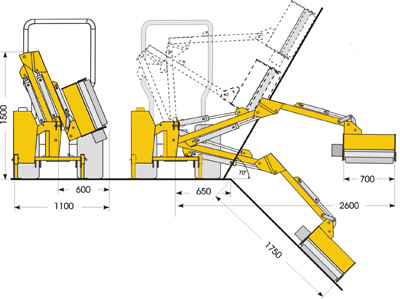

• Arm from centre of tractor to outside cutting device mt 3.00
• n° 32 Y-cutting blades fixed with shackles measure 30*5  - Rotation shaft for blades 3000 rpm. Reversible rotor shaft.
• Operating over a P.T.O. 540 rpm.
• Power input HP 15 - Kw 11.
• Total weight complete with oil Kg 290.
• Overall size cm 110 X 60 H 150.
• In accordance with CE machinery directive.

TRACTOR CHARACTERISTICS

• Minimum HP power 30/35
• Weight 700 Kg
• Track width 1000 mm

ACCESSORIES ON REQUEST

• Air/oil heat exchanger mounted
• On-off electric controls with constant flow joystick
• Rear support with lighting fixtures



Cutting tools F9
