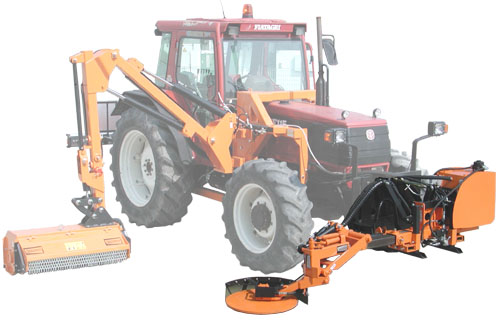

Roadside's mowing grass with over-the-row function
TECHNICAL SPECIFICATIONS
Possibility to work on both right and left sides with small modifications that can be implemented in about 30 minutes.
Possibility to be used at the rear or front of the tractor,provided that the front power take-off is available with the same direction of rotation and turns as the rear PTO
Hydraulic movements controlled by electric commands with adjustable priority flow
Cutting unit available in working widths of 55-65-75 cm on request
Cutting height adjustment through a dedicated hydraulic cylinder
Cutting tilt adjustment through a dedicated hydraulic cylinder
Lateral displacement of the cutting unit by an extension of 80 cm
Automatic overcoming of obstacles such as curbs, plants, and guardrail posts with a manual control device for thrust self-control operated by the operator.
Double hydraulic circuit: the 1st for the blade rotation, the 2nd for movements independent of the tractor
Approximately 80 liters of hydraulic oil in the circuit
Maximum power absorbed by the equipment: 30 HP (25 kW)
