BSKF

HYDRAULIC FLAIL MOWER WITH ARM BSKF

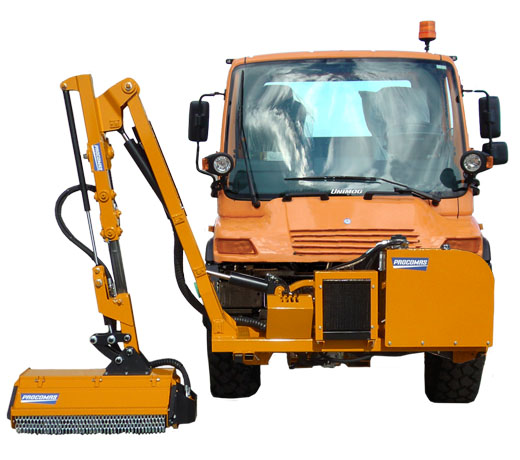

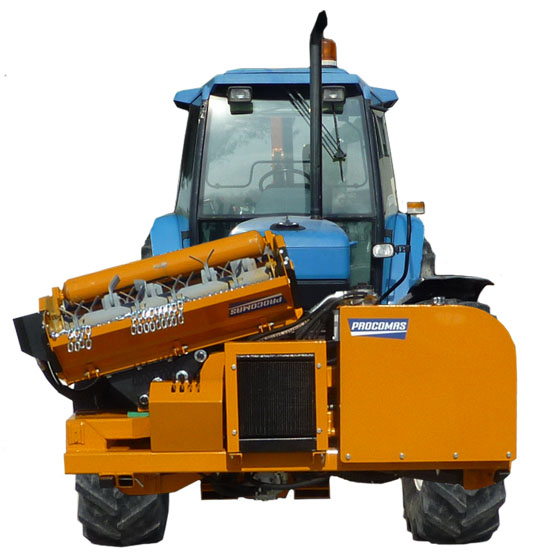

PROCOMAS presents the NEW series of professional hydraulic extendable arm flail mower of the BSKF series; designed to be front-mounted on tractors, industrial backhoes, trucks and any other self-propelled vehicle with a front tool carrier; they allow for wide visibility during work and transport due to their low and compact construction.


TECHNICAL SPECIFICATIONS AND STANDARD ACCESSORIES:

• Arm lenght 5.50-5,70 meter from tractor center to flail mower outer, including a 80 cm detachable by hydraulic control
• 100 or 120 cm working width flail mower with reversible rotor and universal Y knives (other types available upon request), adjustable front and rear protections, adjustable support roller
• Independent hydraulic system (mixed system available on request) with double circuit, cast iron pump and motor with 56 Hp (41Kw) power to rotor at 2900 rpm (piston system available on request)
• Electro-hydraulic controls with constant priority flow with Joystick
• Heat exchanger with a wide exchange surface area and thermostat
• Safety device for front impacts absorption with automatic return and possibility of adjustment of effort and return speed
• Weight of equipment 1190-1210 kg (variable depending on version)

Scarica PDF

Cutting Tools
F1 (60x6) F3 (60x8)	F5	F8
