BS821

NEW HYDRAULIC FLAIL MOWER WITH ARM BS821DS

IT CAN BE USED FOR SMALL AND MEDIUM TRACTORS, PREPARED FOR FRONTAL OR REAR APPLICATION, TO WORK ON BOTH THE RIGHT AND LEFT SIDES without any mechanical modification to equipment; 200° Arm Rotation, Excellent Quality-Price Ratio, made with high quality materials, with the application of the mowing bar becomes an excellent hedge trimmer.

MACHINE SUPPLIED COMPLETE WITH:

• 80 cm or 100 cm work width hydraulic cutter with Y blades type F2 or F5, CE protections.
• Hydraulic tubes protected by spiral
• Commands through flexible cables
• 90 liter oil tank
• Tensioners
• CE manual with spare parts tables and conformity declaration

TECHNICAL SPECIFICATIONS

• Shredder with reversible rotor shaft and adjustable height roller.
• Cutting blades type F2 (40*6) N.32 for F80- N.40 F100L; other types of cutting blades/blades available upon request.
• Independent double circuit hydraulic system with high-performance engine and gear pump group 2+2
• Multiplier for Power Take-Off 540 RPM
• Safety device for absorbing any frontal impacts.
• Weight from 495 to 605 kg.

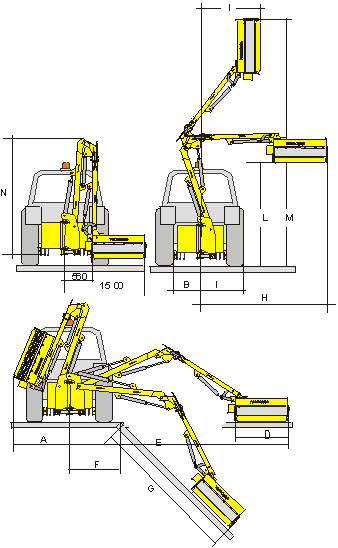

• Outreach from 3,15 to 5,15 metres

Machine compliant with CE directive.

TRACTOR

• Min-Max power HP 30/80
• Weight 1600/2200 Kg
• Track mm 1700

ACCESSORIES ON REQUEST

• Air/oil heat exchanger mounted.
• On/off electric commands with constant flow joystick
• Hydro-pneumatic compensator on lift cylinder
• Rear support with lighting.

Scarica depliant PDF

Cutting Tools F2	Cutting Tools F9
