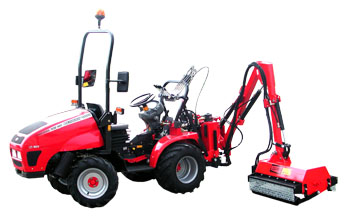

BS72

HYDRAULIC FLAIL MOWER WITH ARM BS72

Suitable for both front and rear application on reversible tractors and designed to work both to the RIGHT and to the LEFT of road slopes without any modifications.

MACHINE SUPPLIED COMPLETE WITH:

• Hydraulc cutter with 80 or 100 cm working width and equipped with Y-shaped blades type F9 fixed with clamps, CE protections.
• Hydraulic tubes protected by spiral.
• Controls by means of flexible cables.
• 55 liter oil tank.
• Tensioners.
• CE manual with spare parts tables and declaration of conformity.

TECNICAL SPECIFICATION

• Cutter with reversible rotor shaft and adjustable height roller.
• Independent double circuit hydraulic system with high-performance gear engine and pump.
• Multiplier for Power Take-Off 540 RPM.
• Weight 290-300 Kg.

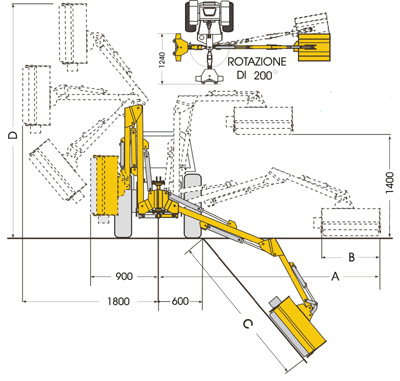

• Outreach 3,20-3,30 mt.

TRACTOR

• Min.power 25 HP
• Weight 900 Kg.
• Track mm 1200

ACCESSORIES ON REQUEST

• Safety device.
• Air/oil heat exchanger mounted.
• On/off electric controls with constant flow joystick.
• Hydro-pneumatic compensator on lift cylinder.
• Rear support with lights.

Cutting tools F9
