BS82CC

HYDRAULIC FLAIL MOWER BS82CC

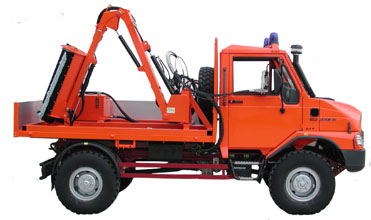

Hydraulic flail mower with BS82CC arm model mounted on "Caron" or "Bremach" truck containers for cutting grass on road shoulders and slopes; available in two versions: the first Model BS82CCP4F100L operates through an independent 540 rpm PTO hydraulic circuit, the second Model BS82CCMAP4F100L is equipped with a 28 HP auxiliary engine, necessary in the absence of the PTO. Machine compliant with CE machinery directive.

TECHNICAL SPECIFICATIONS

• Reach from 4.7 to 5.5 meters from the center of the container to the outer edge of the flail mower
• Hydraulic controls for movements and flail mower via flexible cables, on request they can be provided with electric or electro-hydraulic control
• 100 cm flail mower with universal Y-type F2 (40*6) blades with reversible shaft
• Safety device for absorbing any frontal impacts
• Rear axial locking device. 130-liter hydraulic oil tank complete with accessories
• Weight from 700 to 900 kg
• Machine provided with 4 mechanical feet for quick release of the equipment from the truck

Cutting Tools
F2	F9
