BSKAP-BSRAP
HYDRAULIC FLAIL MOWER BSKAP-BSRAP

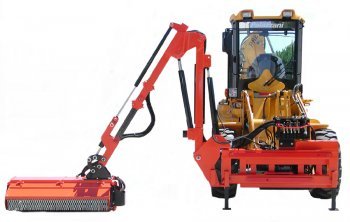

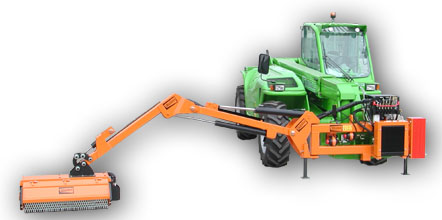

Products designed to be applied to front-end loaders, backhoes, and similar equipment; suitable for cutting grass, reeds, and small bushes in ditches, on flat edges, embankments, and roadside slopes. These applications are very practical to use as they allow for excellent visibility of the work being done.
TECHNICAL SPECIFICATIONS
- 100 cm or 120 cm Cutting width of flail mower
- Outreach from the center of the backhoe to the external mowing unit 5/6 m, the BSK5AP6 model is equipped with a hydraulic detachable system with a stroke of 88 cm.
- Operates with the hydraulic circuit of the backhoe that normally operates the hydraulic demolition hammer
- Applicabile in sostituzione della pala anteriore tramite aggancio rapido, se previsto dal costruttore della terna. Can be applied as a replacement for the front loader through quick coupling, if provided by the backhoe manufacturer
- Electro-hydraulic distributor for controlling the hydraulic cylinders of the mowing arm and for the rotation of the shaft carrying the blades, in a special version. Considering that the flow rate of the hydraulic circuit oil is always limited, the installed electro-hydraulic distributor allows all the flow rate of the hydraulic oil to flow to the hydraulic motor of the shredder, thus developing the maximum available power; only when there is a need to move the arm is the necessary oil taken, after which it automatically returns to its original state.
- Control panel, located in the cab and convenient for the operator, consisting of two lever controls with cross movement, a light switch for inserting the rotation of the shaft carrying the blades clockwise or counterclockwise, an emergency button that cancels all commands, a light indicator warns that the panel is powered by a switch that can only be operated with a key.
- Weight 800-850 kg
ACCESSORIES ON REQUEST
- Hydropneumatic compensator on the lift cylinder (CH075)
- Electro-hydraulic controls with control panel
- Front bumper with lights (PF835)
- Left side ballast (Z100)

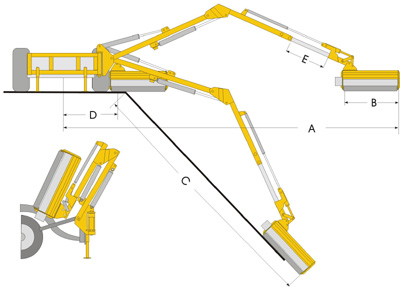

| MACHINE |
A
|
B
|
C
|
D
|
E
|
KG
|
| BSK4 AP5 F100 |
5,00
|
1,00
|
3,55
|
0,90
|
-
|
800*
|
| BSK4 AP5 F120L |
5,20
|
1,20
|
3,75
|
0,90
|
-
|
820*
|
| BSK5 AP6 F100 |
6,00
|
1,00
|
4,55
|
0,90
|
0,80
|
830*
|
| BSK5 AP6 F120L |
6,20
|
1,20
|
4,75
|
0,90
|
0,80
|
850*
|
|
Cutting Tools
|
|
F1 (60x6)
F3 (60x8)
|
F5
|
F8
|
 |
 |
 |
