BTS13

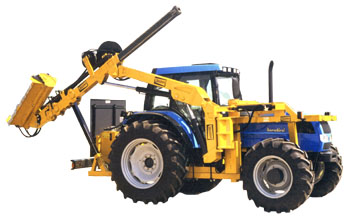

TELESCOPIC HYDRAULIC FLAIL MOWER BTS13 - MOUNTED CENTRAL ON TRACTOR

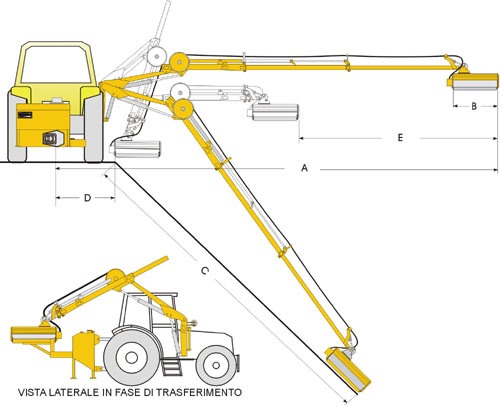

Hydraulic flail mower with telescopic terminal, with a range of 6 meters, designed for professional use and for cutting grass at long distances while also working near the tractor wheel; built with high-strength steel sheet and high yield stress as lightness is the main basis for their usability. The simplicity of use of these telescopic arms allows for greater productivity as the cutting device can be moved along the entire slope with a single motion.

MACHINE SUPPLIED COMPLETE WITH:

• 100 or 120 cm heavy-duty work hydraulic flail mower with standard Y-type F1, F3 or F5 tine with reversibility shaft port tine; on request rotor with flat hoe type F4-F6-F8. CE protections and adjustable height roller.
• Independent double circuit hydraulic system with high performance cast iron gear motor and pump
• Multiplier for oil bath pumps and a Power Take-Off of 540 rpm
• High resistance tubes protected by spiral
• Commands by means of flexible cables
• Device for absorbing any frontal impacts
• Mounting on tractor at our headquarters
• CE manual with spare parts tables and conformity declaration

ACCESSORIES ON REQUEST

• Air-oil cooling system mounted
• Hydro-pneumatic compensator on lift cylinder
• Constant flow electro-hydraulic controls with joystick
• Rear support with lighting
• Side weights

Cutting Tools
F1 (60x6) F3 (60x8)	F4 (Heavy duty type hammer)	F5 (Swivel cutting blade)	F6 (Rotating hammer)	F8 (Light flat hoe type)
