BS835C - PROCOMAS

POWER FOR PROFESSIONALS

BS835C

BS835C CENTRAL HYDRAULIC FLAIL MOWER

Installed central on tractor, built with high strength T1A steel sheet; all joints are mounted on cemented and grease-lubricated sockets. Good performance with a professional cut especially for those operating in the highway sector.

MACHINE SUPPLIED COMPLETE WITH:

100 or 120 cm heavy-duty work hydraulic flail mower with standard Y-type F1 or F3 tine with reversibility shaft port tine, CE protections and adjustable height roller. On request rotor with flat hoe type F4-F5-F6-F8.
Independent double circuit hydraulic system with high performance cast iron gear motor and pump
Multiplier for oil bath pumps and a Power Take-Off of 540 rpm
High resistance tubes protected by spiral
Commands by means of flexible cables
Device for absorbing any frontal impacts
Oil tank with 160 liters
Mounting on tractor at our headquarters
Tensioners and cardan
CE manual with spare parts tables and conformity declaration

ACCESSORIES ON REQUEST

Air-oil cooling system mounted
Hydro-pneumatic compensator on lift cylinder
Constant flow electro-hydraulic controls with joystick
High-pressure gear motor and pump system
Variable flow hydraulic piston pump system
Rear support with lighting
REAR BLOWER COMPLETE WITH HYDRAULIC ENGINE

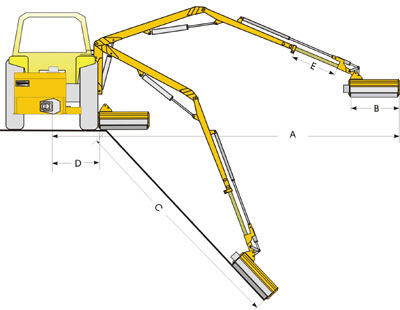

MACHINE MOD.	A*	B	C*	D*	E	KG*
BS835 C6 S150 F110	8,90	1,00	7,70	1,20	1,50	1430*
BS835 C6 S150 F130	9,10	1,20	7,90	1,20	1,50	1450*
BS835 C8 S150 F110	10,30	1,00	9,10	1,20	1,50	1660*
BS835 C8 S150 F130	10,50	1,20	9,30	1,20	1,50	1680*
*Subject to changes based on the tractor's specifications
*Weights subject to change based on the tractor's specifications

Cutting Tools
F1 (60x6) F3 (60x8)	F4 (Heavy duty type hammer)	F5 (Swivel cutting blade)	F6 (Rotating hammer)	F8 (Light flat hoe type)

POWER FOR PROFESSIONALS

Link to a short video of the BS835C
